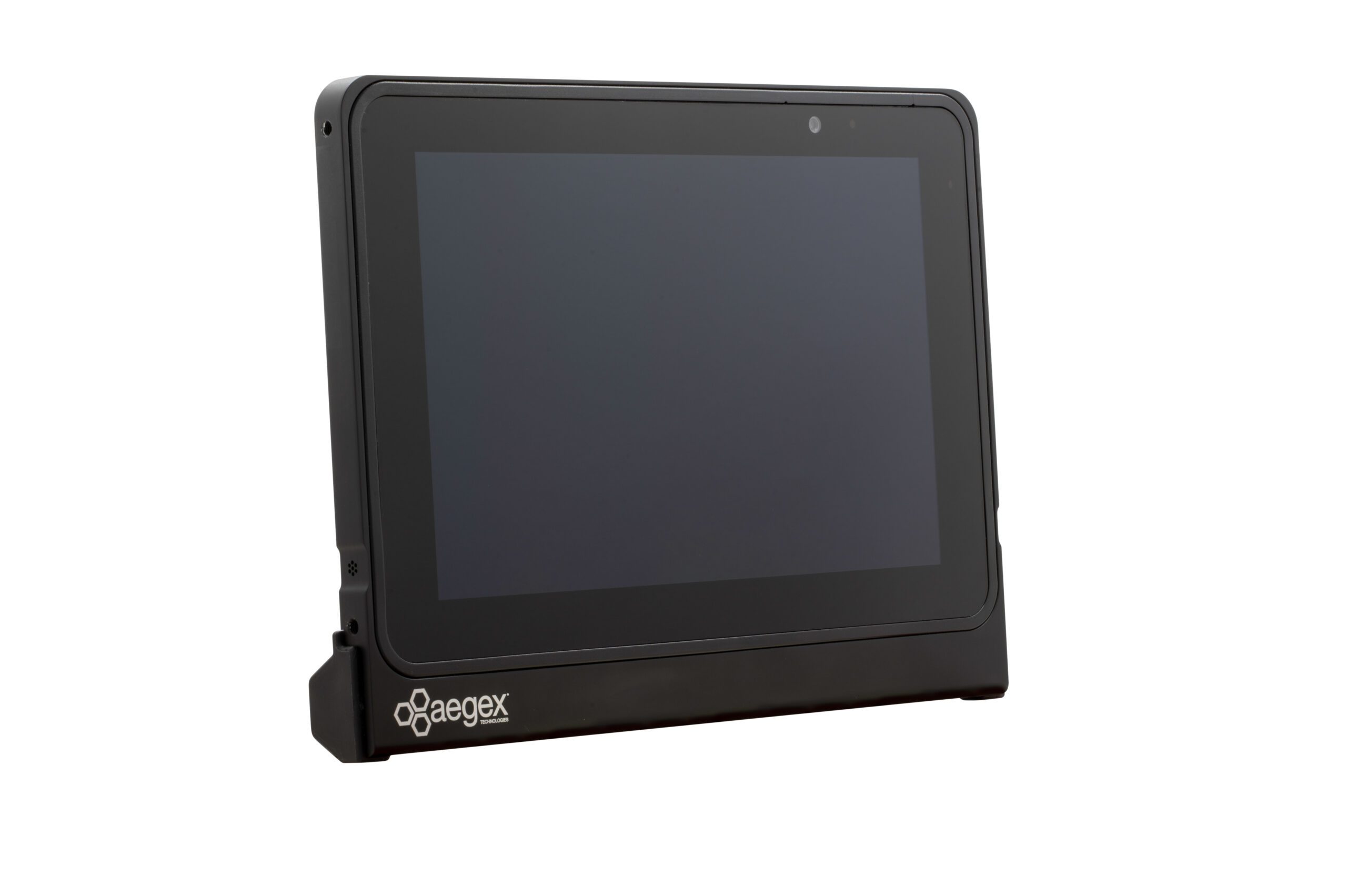

Aegex 100M Intrinsically Safe Tablet

Description

[et_pb_accordion open_toggle_background_color=”#FFFFFF” closed_toggle_background_color=”#FFFFFF” icon_color=”#E02B20″ _builder_version=”5.0.0-public-alpha.18.2″ db_closeable=”on” global_colors_info=”{}” layout_display=”block”][et_pb_accordion_item title=”INTRINSICALLY SAFE CERTIFICATIONS” open=”on” _builder_version=”4.19.4″ global_colors_info=”{}”]

In certification for Zone 1/21 & Zone 0/20 certification according to
ATEX, IECEx, and UL 913 standards. Following are the planned certifications:
UL 913 8th Edition, CSA C22.2 No. 60079-0 & -11
Class I, II, III, Division 1, Groups A-G, T4
Tamb = -20°C…+50°C, IP67
IECEx
Ex ia IIC T4 Gb
Ex ia IIIC T135°C Db
Tamb = -20°C…+50°C, IP67
ATEX
II 2G Ex ia IIC T4 Gb
II 2D Ex ia IIIC T135°C Db
Tamb = -20°C…+50°C, IP67

[/et_pb_accordion_item][et_pb_accordion_item title=”EXTERIOR” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

W x H x D: 278 x 207 x 13.8 mm (10.94 x 8.15 x 0.54 in) – without battery
W x H x D: 278 x 207 x 28.3 mm (10.94 x 8.15 x 1.11 in) – at battery section
Estimated final weight: 1400g (3.08 lbs)

[/et_pb_accordion_item][et_pb_accordion_item title=”DISPLAY” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Screen	10.1” AHVA Full HD Plus
Resolution	WQXGA – 2560 x 1600
Contrast	1000:1 (min 800:1)
Brightness	540 NITS, 16.7M Colours
Viewing angle (up/down, left/right)	170°

[/et_pb_accordion_item][et_pb_accordion_item title=”BATTERY LIFE” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

7.4V, 6500mAh, 48.1Wh
Rechargeable Lithium Cobalt Oxide

[/et_pb_accordion_item][et_pb_accordion_item title=”CHARGING TIME (STANDBY)” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Wall adaptor: 0-90% in 2.5hours, to 100% in approx. 3.5 hours

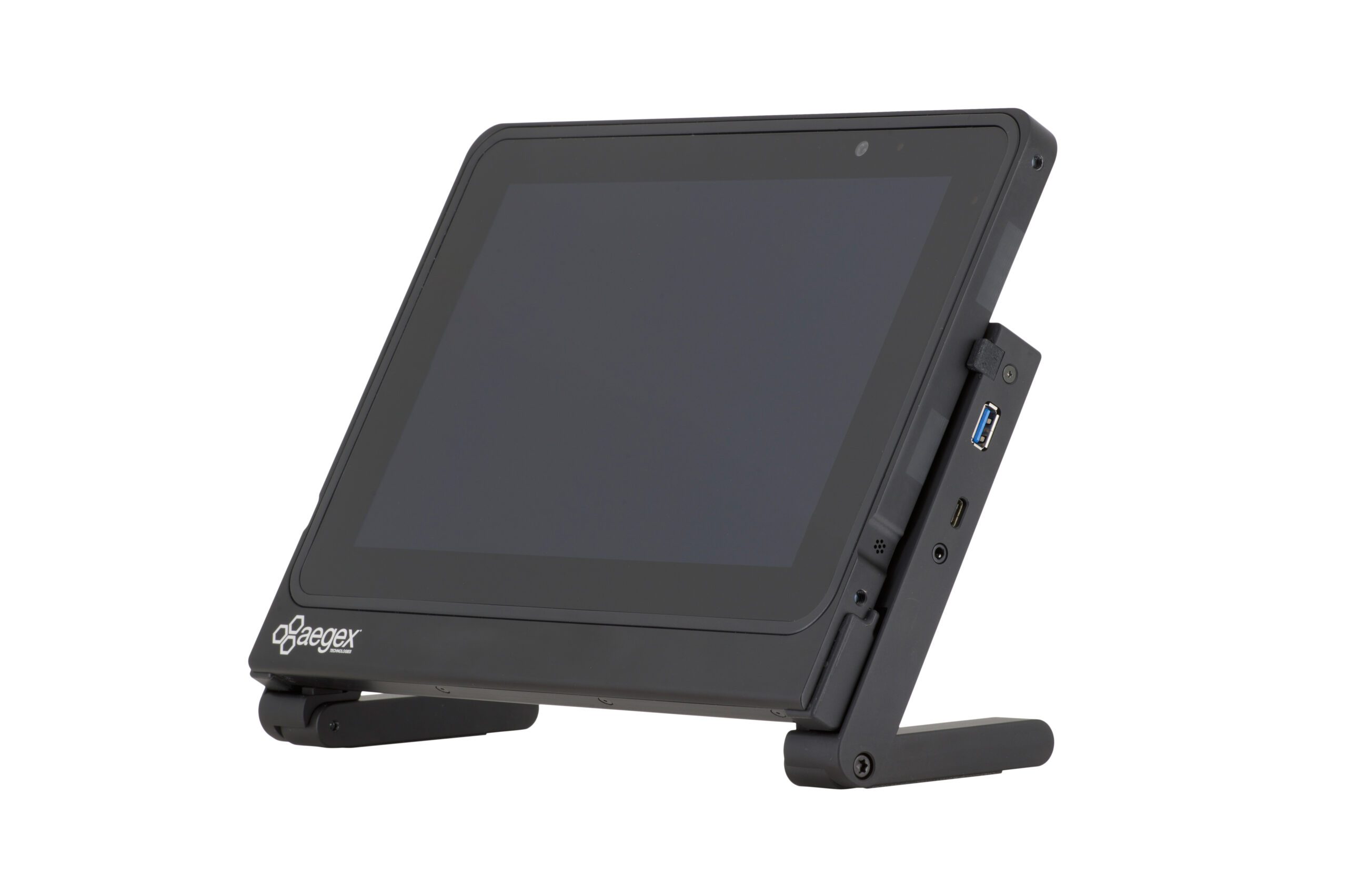

Docking station: 0-90% in 2.5hours, to 100% in approx. 3.5 hours

[/et_pb_accordion_item][et_pb_accordion_item title=”STORAGE/RAM/CPU” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Intel® Quad-Core Apollo Lake processor
Base: 1.6GHz, Burst 1.8GHz
8GB RAM, 256GB storage
MicroSDXC Card Slot (up to 2 TB cards supported)

[/et_pb_accordion_item][et_pb_accordion_item title=”WIRELESS COMMS” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

WiFi 802.11 a/b/g/n/ac/r/k/v/w/hc/ax
Bluetooth 5.2 + HS
LTE: Supported Bands TBD (optional)
NFC
AegexScan Barcode Reader (optional)

[/et_pb_accordion_item][et_pb_accordion_item title=”LOCATION” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

GPS / GLONASS / Galileo
(Cold start <30s, Hot start < 2s)

[/et_pb_accordion_item][et_pb_accordion_item title=”CONNECTIONS” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Magnetic pin connector for rapid charging with Aegex Wall Charger

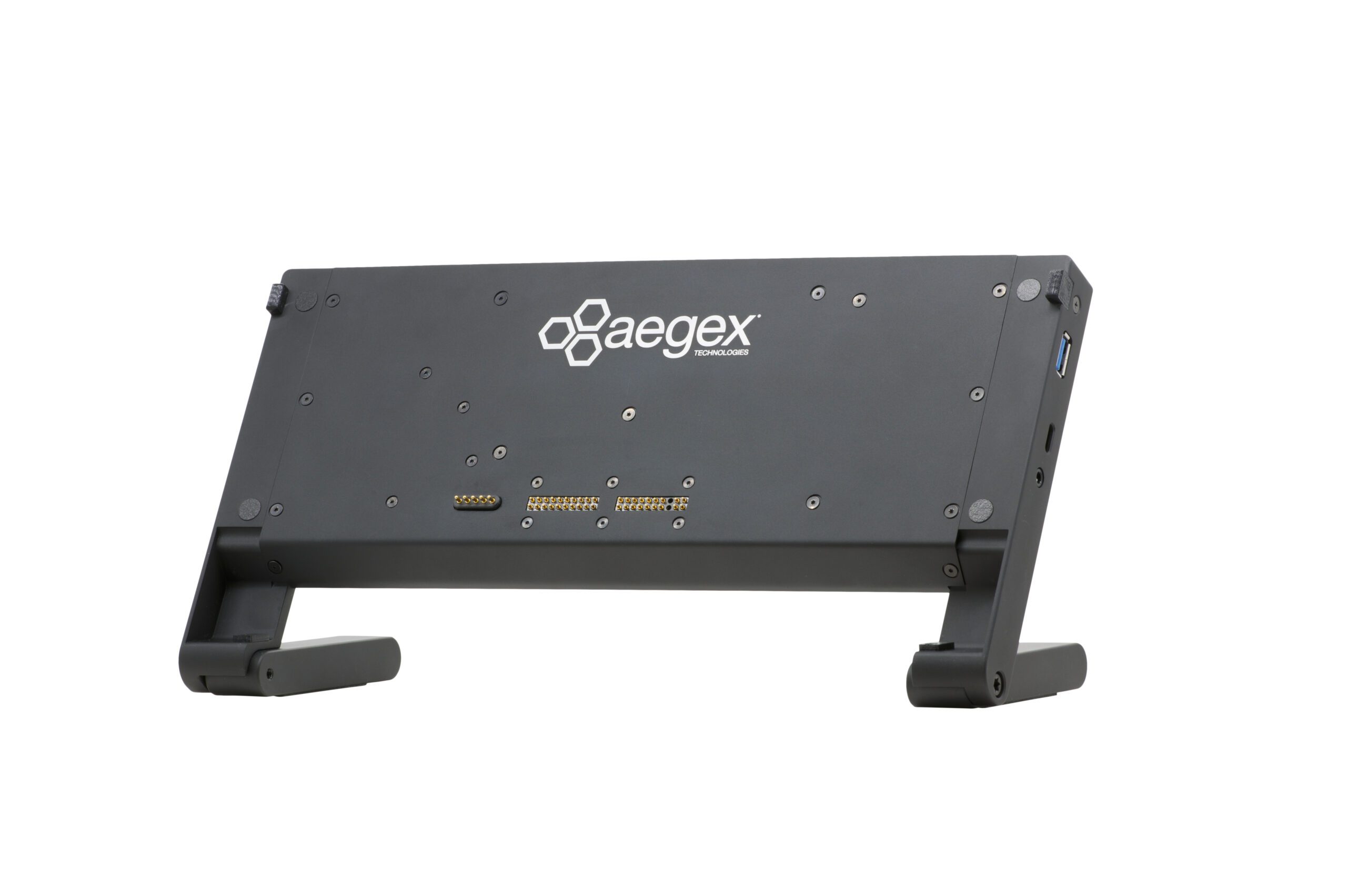

Docking connector supports LAN, USB 2.0, 3.0, USB-C, HDMI,
SD Card, and audio jack

[/et_pb_accordion_item][et_pb_accordion_item title=”SOFTWARE” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

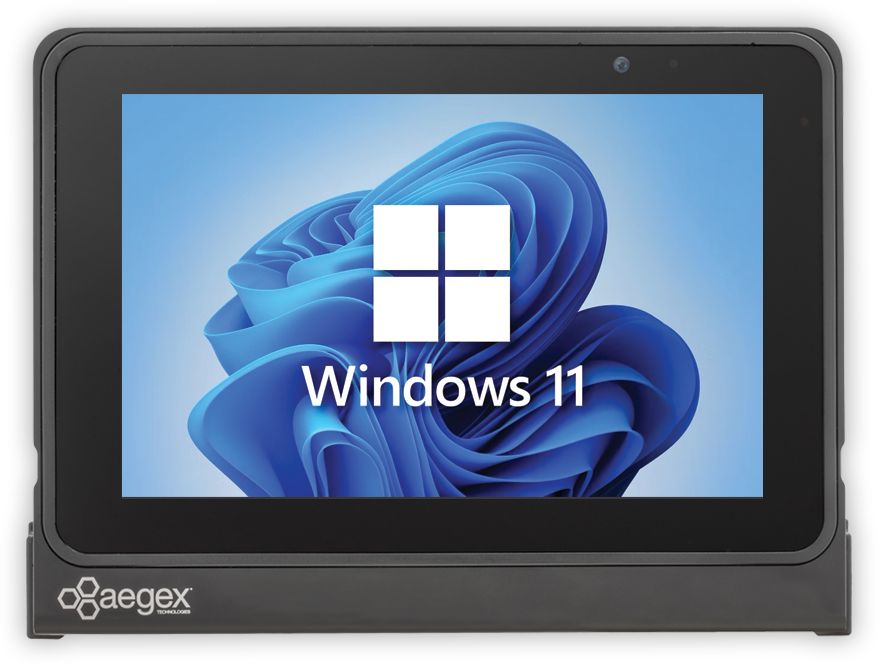

Windows 11 IoT Enterprise
AegexScan Application – Optional

[/et_pb_accordion_item][et_pb_accordion_item title=”CAMERAS, VIDEO & AUDIO” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Main Camera (rear-facing): 8MP Auto-focus with flash
Image: 3264 x 2448 px jpg, video: 1080p (Full HD 1920 x 1080) 30 fps
Secondary Camera (Front-facing)
Image: 1920 x 1080 px jpg, video: 1080p (FullHD 1920×1080) 30 fps
2 digital microphones (Front/Back), front facing microphone array.
Stereo speakers

[/et_pb_accordion_item][et_pb_accordion_item title=”SENSORS” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Ambient light sensor (ALS), Accelerometer, Gyroscope,
E-Compass, SAR proximity sensor

[/et_pb_accordion_item][et_pb_accordion_item title=”SECURITY” _builder_version=”4.19.4″ _module_preset=”default” global_colors_info=”{}” open=”off”]

Intel® TXE Boot Guard 2.0
FW TPM (Intel® PTT3)
Intel® Trusted Execution Engine Interface (Intel® TXEI) Driver
Intel AES New Instructions
BitLocker
