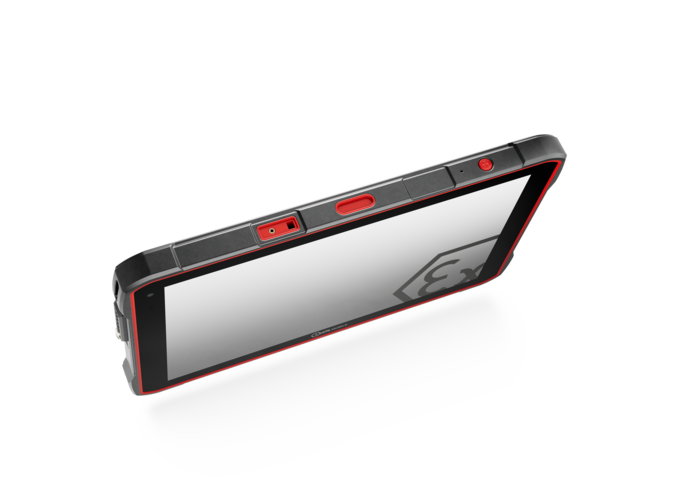

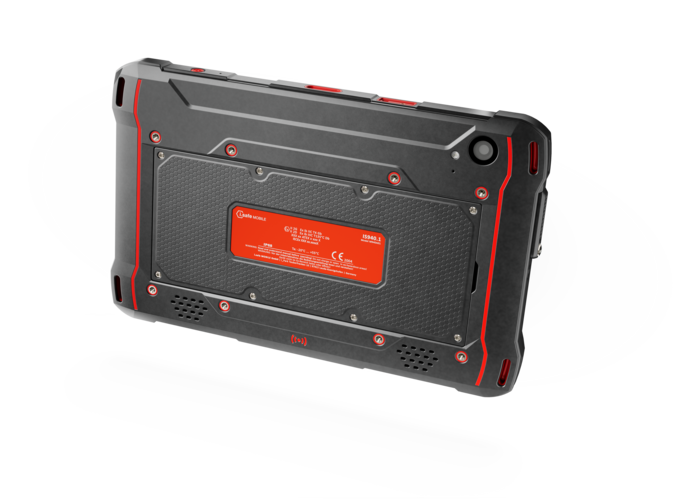

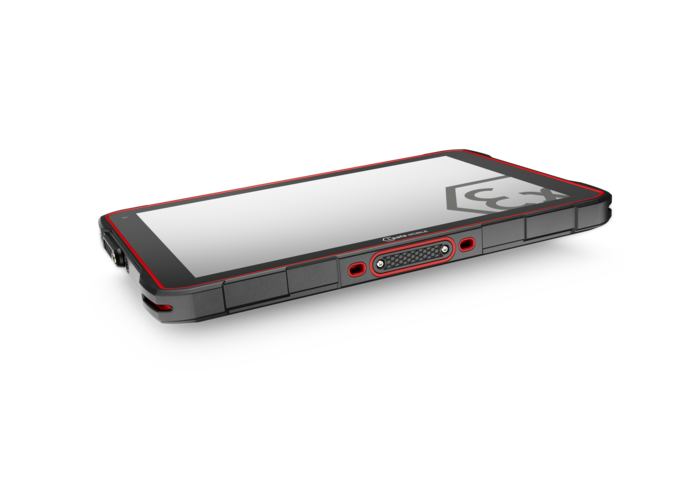

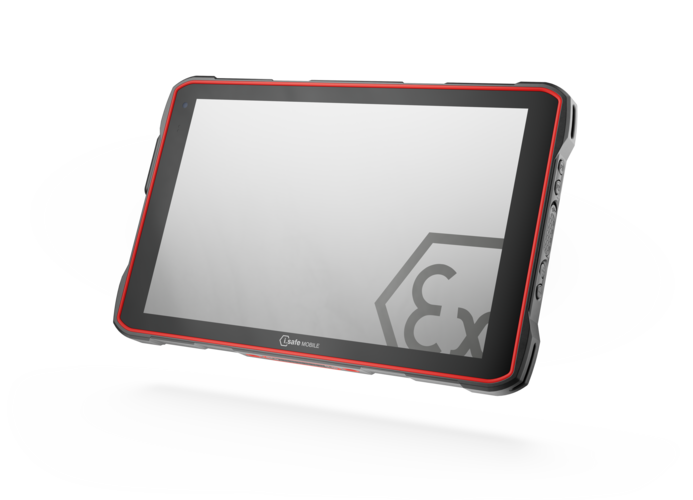

iSafe Tablet IS940.1 Tablet Zone 1/21

The 10.1-inch 5G Android tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6.

The 10.1-inch 5G Android tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IIoT-optimised chipset from Qualcomm® Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, 12-pin ISM interface for Docking Station, Wi-Fi 6, Bluetooth 5.2 and NFC support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras.

Features

  • Android™ 14 operating system
  • 4G/5G
  • Processor with long-term support: Qualcomm® QCM6490 Octa Core
  • Clear 10.1" display with Corning® Gorilla® Glass 3rd generation
  • Large memory with 8 GB RAM, 128 GB internal memory expandable with microSD memory
  • Wireless communications such as Wi-Fi® , Bluetooth®, Near Field Communication (NFC), GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
  • Type of protection: IP68 waterproof/dustproof
  • Additional programmable side buttons (assignable via "Button App")
  • Can be used from -20 °C to +55 °C
  • Usable with gloves

In the box:

Tablet with replaceable battery, Hand Strap, i.Safe PROTECTOR 2.0, Type C USB Cable, Universal Power Adapter, Display Protection Foil, Quick Start Manual and Safety Instructions

TECHNICAL SPECIFICATION
Type IS930.1
Operating System

Android 14

Size 266.17 x 168.46 x 19.82 mm
Weight 1059g
PTT ready optional (third party application required)
LWP ready optional (third party application required)
Bluetooth® 5
Frequencies 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B71/B68
4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Wi-Fi® WiFi 2,4 GHz + 5 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with max. 8 connections hotspot
NFC Near Field Comunication
Location GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
Display 10.1" display with Corning® Gorilla® Glass 3rd generation
Processor Qualcomm® QCM6490 Octa Core
Memory 8 GB RAM | 128 GB internal memory
Micro-SD up to 512 GB
Camera 50 MP AF rear camera | 5 MP FF front camera
Battery 8160 mAh, 3.7v (replaceable)
Operation IP68 dust-/waterproof | MIL-STD 810H | Usable from -20 °C to +55 °C
APPROVALS
  • ATEX approval: EX-Zone 2/22
    II 2G Ex ib IIC T4 Gb
    II 2D Ex ib IIIC T135°C Db
  • IECEx approval: EX-Zone 2/22
    Ex ib IIC T4 Gb
    Ex ib IIIC T135°C Db
  • NEC500 approval:
    Class I Div. 1 Groups A, B, C, D, T4
    Class II Div. 1 Groups E, F, G, T155 °C
    Class III
  • EAC approval:
    Ex ib IIC T4 Gb
    Ex ib IIIC T135°C Db
