Description

[et_pb_accordion open_toggle_background_color=”#FFFFFF” closed_toggle_background_color=”#FFFFFF” icon_color=”#E02B20″ _builder_version=”5.0.0-public-alpha.18.2″ db_closeable=”on” global_colors_info=”{}” layout_display=”block”][et_pb_accordion_item title=”FEATURES” open=”on” _builder_version=”4.19.4″ global_colors_info=”{}”]

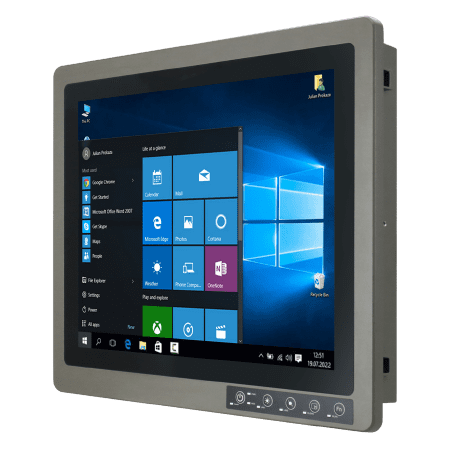

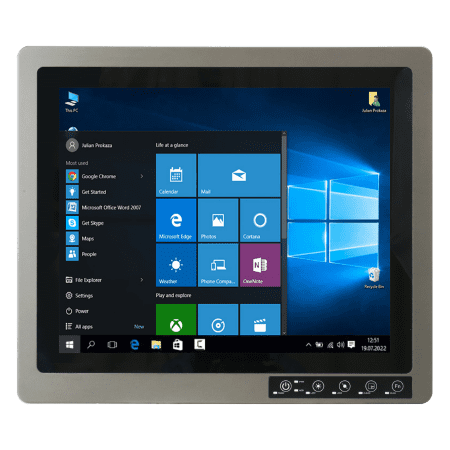

• Class 1, Division 2 & ATEX Zone 2 certified for hazardous area applications
• High performance / low power Intel Haswell Core i7-4650U
• 19-inch 600 nits LCD panel / Optional 1000 nits sunlight readable panel
• Fanless, streamlined enclosure for highly efficient heat dissipation
• Touch screen control button to enable/disable touch screen interface
• Front control membrane keys Lockable by software
• Intelligent Heater for working in extreme cold environments -40°C
• Optional WLAN
• Optional Optical Bonding





[/et_pb_accordion_item][et_pb_accordion_item title=”DISPLAY” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Size	19″
Active Display Area	376.32(H) x 301.06(V)
Pixel Pitch	0.294(H) x 0.294(V)
Resolution	1280 x 1024
Contrast Ratio	1000:1
Display Color	16.7M
Panel Brightness	600 nits (typ.), Optional 1000 nits
Viewing Angle	-85~85(H);-80~80(V)
Recommend Resolution	1280 x 1024
Touch Sensor Type	Projected Capacitive
Resolution	1280 x 1024

[/et_pb_accordion_item][et_pb_accordion_item title=”SYSTEM” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Processor	Intel Core i7-4650U max. 3.3GHz
Chipset	Intel® HD graphics 5000
Memory	1 x DDR3L SO-DIMM 1600 MHz, 4GB default. Max to 8GB
BIOS	AMI BIOS
Storage	mSATA SSD 128GB.Max to 512GB
OS	Windows Embedded Standard 7(optional) Windows 7 PRO for Embedded System (optional) Windows Embedded 8 Standard (optional) Windows Embedded 8.1 Industrial(optional) Windows 10 IoT Enterprise
Net Weight (kg)	13.5 Kg
Gross Weight(kg)	13 Kg

[/et_pb_accordion_item][et_pb_accordion_item title=”I/O CONNECTORS” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

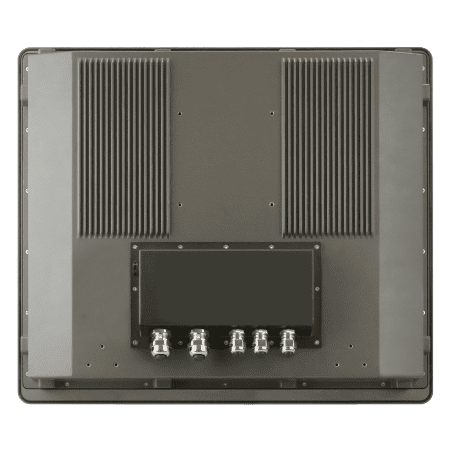

Back Panel I/O Port	2 x Ex-Type Brass Cable Gland M16 (Cable range 7.5~10.2mm) 3 x Ex-Type Brass Cable Gland M12 (Cable range 5.4~8mm)
Internal I/O pin-header	1 x USB 2.0 terminal block 1 x LAN terminal block 1 x RS232/422/485 terminal block 1 x 9~36V DC input terminal block

[/et_pb_accordion_item][et_pb_accordion_item title=”MECHANICAL & ENVIRONMENT” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Operating Temperature	-40˚C to +70˚C (with intelligent heater)
Operating Humidity	5 to 95% (non-condensing)
Certifications	Ordinary Location Safety: UL 60950-1 CSA C22.2 No. 60950-1-07 EN 60950-1 Hazardous Location Safety: CID2 No. cCSAus 261821 Class I, Div.2, Groups A,B,C,D T4 Meet Standards: ANSI/ISA-12.12.01-2013 CSA Std. C22.2 No. 213-M1987 -40oC to +70oC ATEX II 3G Ex nA ic IIC T4 Gc No. Sira 16ATEX4204X Meet Standards: EN 60079-0, EN 60079-11, EN 60079-15 -40oC to +70oC IECEx Ex nA ic llC T4 Gc No. IECEx SIR 16.0070X Meet Standards: IEC 60079-0, IEC 60079-11, IEC 60079-15 -40oC to +70oC CE, FCC Shock: MIL-STD-810G Method 516.6 Drop: MIL-STD-810G Method 516.6 Vibration: MIL-STD-810G Method 514.6
Cooling System	Fanless design
Dimension (W x H x D)	474 x 410 x 111 mm
IP Proof	IP54 Meet Standard IEC60079 (for Hazardous location)

[/et_pb_accordion_item][et_pb_accordion_item title=”POWER” _builder_version=”4.19.4″ global_colors_info=”{}” open=”off”]

Power Input

9~36V DC input (isolation)

[/et_pb_accordion_item][et_pb_accordion_item title=”ACCESSORIES” _builder_version=”4.19.4″ _module_preset=”default” global_colors_info=”{}” open=”off”]

Standard	Optional
24V 150W AC to DC Adapter Power cord Open wired power cable for M12 cable Gland Open wired USB cable for M12 cable Gland Open wired LAN/COM cable for M16 cable Gland VESA Mounting Screws Mounting Clips & Screws 3 Pins Terminal Block For Power 8 Pins Terminal Block For LAN 4 Pins Terminal Block For USB 10 Pins Terminal Block For COM	SMA male to female extension cable for M12 cable Gland (Optional)

[/et_pb_accordion_item][/et_pb_accordion]
